Lionfish писал(а):Эх, трудно выбирать вещи, не видя их...
И невозможно. Если, конечно, Crazzy не расколется и не скажет, что именно нужно покупать к Nomad'у. Если же хотите простой и заведомо рабочий вариант, то моностропа + ал. спинка + trec или rec.
Вот инструкция по сайдмаунту (без рисунков). Если нужны рисунки, то могу прислать по электронной почте. Это всё с сайтов
www.diveriteexpress.com и
www.diverite.com Там толкуется про Транспак, но Транспак здесь не причем, достаточно обычной спинки.
BC2725 and BC2725XL
Side Mount Accessory Kit
Product description
The Side Mount Accessory Kit is used to convert the TransPac Harness into a side
mount diving system. By installing the parts from this kit, you can quickly convert your
TransPac to accommodate cylinders mounted on your side.
Side Mount Accessory Kit parts list
Part name Part number Quantity
Cylinder bungee strap BC2722 1
Trek wing limiting strap BC2770-TREK 1
Butt plate with crotch strap BC2721 1
Assembly screws 1069 3
Fender washers RP9586 2
Installation
Each piece of the side mount kit must be installed and set up correctly. Follow the
instructions below to correctly install each piece of the kit.
Step 1: Attach the Trek wing to the TransPac harness
Note: Refer to the “TransPac and wing assembly” diagram below for details.
1.
Open up the TransPac by unclipping the shoulder straps and waist strap.
2.
Remove the TransPac back pad. The pad cannot be used with the side mount
system.
3.
Make sure the cummerbund is not routed through the webbing retaining straps at
the base of the TransPac backpack. If it is, slip it out of the retaining straps so
that it lies on top of the TransPac backpack. Route the waist strap webbing
through the retaining straps on the ends of the cummerbund.
4.
Place the TransPac face up on a flat surface. Extend the shoulder straps and
waist strap so that the TransPac is lying flat and opened completely.
5.
Place the Trek wing on top of the TransPac. The wing gusset control cord should
be facing up.
6.
Line up the top grommet hole on the Trek wing with the bottom grommet hole at
the top of the TransPac. Line up the bottom grommet hole on the Trek wing with
the cummerbund’s bottom grommet hole.
7.
Attach the wing to the TransPac and cummerbund using two of the provided
assembly screws. Slip the female end of the screw through the bottom of the
User Product Data Sheet 21JUL04
BC2725 and BC2725XL -Side Mount Accessory Kit for the TransPac Harness 1 / 8
grommet holes and thread the male end of the screw through the top of the
grommet holes.
8.
Tighten the screws until they are snug. The wing and cummerbund should now
be securely fastened to the TransPac.
9.
Route each side of the waist strap, cummerbund, and base plates through the
open slots at the base of the wing. The waist strap, cummerbund, and base
plates should drape over each side of the wing.
10.
Place the corrugated inflator hose in the Velcro epaulet on the left shoulder strap.
11.
Flip the shoulder straps over the top of the wing and clip into place.
TransPac shoulder straps
Trek wing
Assembly
screws
Waist strap slots
TransPac waist strap and cummerbund
TransPac and wing assembly diagram
21JUL04 User Product Data Sheet
2 / 8 BC2725 and BC2725XL -Side Mount Accessory Kit for the TransPac Harness
Step 2: Attach the cylinder bungee strap
The cylinder bungee straps are used to hold the side mounted cylinders in place under
your arm pits. The bungees should be slipped over the cylinder valves so that the
cylinders do not hang below your chest.
Note: Refer to the Bungee strap assembly diagram below for details.
1.
Place the TransPac face down.
2.
Locate the open webbing slots at the top of the TransPac.
3.
Remove the bungee cord from one side of the webbing strap.
4.
Slide the webbing strap through the webbing slots. Make sure the grommet hole
faces up.
5.
Align the grommet hole on the webbing strap with the grommet hole on the
TransPac.
6.
Using one of the assembly screws provided, secure the webbing strap to the
TransPac. Slip the female end of the screw through the bottom of the grommet
hole and thread the male end of the screw through the top of the grommet hole.
7.
Tighten the screw until it is snug. The cylinder bungee strap and webbing should
now be securely fastened to the TransPac.
8.
Reattach the bungee cord to the webbing strap. Make sure a brass clip (not
provided) (HW1005 fixed eye #1 clip is recommended) is on both bungee straps.
Note: The bungee straps will have to be sized based on the cylinders you are
using and your body size. Do not cut the bungee cords until you are sure they
are sized to your requirements.
9.
Clip each side of the strap to the D-rings on the TransPac shoulder straps. This
keeps the bungee straps in place and easily accessible.
Cylinder bungees
TransPac
and webbing strap
Open webbing
slotsAssembly screw
Cylinder bungee strap assembly diagram
User Product Data Sheet 21JUL04
BC2725 and BC2725XL -Side Mount Accessory Kit for the TransPac Harness 3 / 8

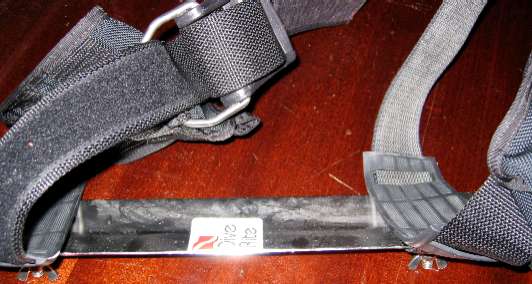

Step 3: Attach the butt plate
The butt plate is used to attach the bottom of the side mounted cylinders. Your
cylinders clip directly to one of the D-rings on each side of the butt plate. The butt
plate also has an attachment point for a 2-inch crotch strap (not provided).
Note: Refer to the Butt plate assembly diagram below for details.
1.
Place the TransPac face down.
2.
Slip the top of the butt plate under the bottom of the TransPac but on top of the
cummerbund and wing.
3.
Place the butt plate grommet holes under the two small D-rings on the side of the
TransPac and the grommet hole in the center of the TransPac.
4.
Using two of the assembly screws provided and the two fender washers provided,
secure the butt plate to the TransPac. Slip the female end of the screw through the
outside grommet holes on the butt plate and then through the D-rings on the
TransPac. Place a fender washer over the female end of the screw, and then
thread the male end of the screw through the top of the fender washer and D-ring.
5.
Use the third assembly screw to attach the center of the butt plate to the
TransPac. Slip the female end of the screw through the center grommet hole on
the TransPac and butt plate and then thread the male end of the screw through
the top of the grommet hole.
6.
Tighten the screws until they are snug. The butt plate should now be securely
fastened to the TransPac.
Butt plate
Bent D-ring HW1062B
(not provided)
Neoprene pad BC1085
recommended, slips over
crotch strap to prevent
Crotch strap BC1058-2
exposure suit chaffing
(not provided)
TransPac
Assembly screws
and fender washers
(not provided)
Butt plate assembly diagram
21JUL04 User Product Data Sheet
4 / 8 BC2725 and BC2725XL -Side Mount Accessory Kit for the TransPac Harness
Step 4: Attach the Trek Wing limiting strap
The Trek wing limiting strap is used to keep the bottom part of the wing streamline and
flat on your back. If you do not use the limiting strap, you will get “angel” wings, where
the wings stick straight up off your back. This reduces your ability to navigate tight
restrictions and makes the wing vulnerable to damage. You will have to adjust the size
of this strap based on your exposure suit and body size. The strap can be cut and
retied based on your requirements.
Note: Refer to the Trek wing assembly diagram below for details.
1.
Locate the limiting strap attachment points on each side of the wing.
2.
Weave each side of the limiting strap webbing piece with the female portion of
the clip to the attachment points on the wing.
3.
Clip each side of the limiting strap into the clips that are now attached to the
wing.
4.
Wearing your exposure suit, adjust the length of the bungee strap so that it is
tight enough to keep the wing lying flat on your back. Once the bungee strap is
sized, you can trim off any excess bungee.
Attachment point Attachment point
Trek wing limiting strap
Trek wing assembly diagram
User Product Data Sheet 21JUL04
BC2725 and BC2725XL -Side Mount Accessory Kit for the TransPac Harness 5 / 8
Step 5: Adjust the wing gusset control cord
The wing gusset control cord keeps the wing material streamline and secure but
stretches when air is added to the wing. For side mounting, this is very important so
that the wing does not extrude or bulge out, making it vulnerable when squeezing
though tight restrictions.
Note: By tightening the gusset control cord, you loose some buoyancy capability. Do
not over tighten the gusset control cord. When diving a dry suit, you can usually keep
the gusset control cord tight. When diving a wetsuit or with heavy tanks, you may need
to keep the gusset control cord looser so that you can get the most buoyancy from the
wing.
To adjust the wing gusset control cord:
1.
Unclip the gusset control cord from one of the adjustment points.
2.
Slide the excess gusset control cord through the retainers so that the wing
conforms evenly.
3.
Slide the button clip down the gusset control cord until it meets the first retainer.
4.
Clip the gusset control cord end onto the D-ring.
Note: If there is a lot of excess gusset control cord, either tuck it away or cut it off and
reattach the clip. Make sure that you do not cut off too much because you might have
to loosen the gusset control cord at a later date.
Wing gusset control cord
Wing gusset control cord
adjustment points
Wing gusset control cord adjustment diagram
21JUL04 User Product Data Sheet
6 / 8 BC2725 and BC2725XL -Side Mount Accessory Kit for the TransPac Harness
Step 6: Attach clips to each cylinder
Two clips must be attached to each side mount cylinder. One clip must be attached to
the cam band. The cam band should be positioned just below mid-point on the
cylinder. The clip is used to attach the cylinder to a butt plate D-ring and provides the
primary attachment point for the cylinder.
A second clip must be placed around the neck of the cylinder. This clip provides a
safety attachment point for the cylinder. It clips directly to a shoulder harness D-ring
and provides the second attachment point for the cylinder.
Neck clip #2 swivel
HW1002 (not provided)
Cam band BC2032 or BC2034
and HW1002 #2 swivel clip
(not provided)
Cylinder clip attachment points
User Product Data Sheet 21JUL04
BC2725 and BC2725XL -Side Mount Accessory Kit for the TransPac Harness 7 / 8
